4 Channels DWDM Mux Demux, 100GHz C57-C60, with Monitor and Expansion Port, 2.75dB Typical IL, LC/UPC, Single Fiber, Side-B, High Density, FHD™ Plug-in Module
4 Channels DWDM Mux Demux, 100GHz C57-C60, with Monitor and Expansion Port, 2.75dB Typical IL, LC/UPC, Single Fiber, Side-B, High Density, FHD® Plug-in Module, Product Specification:Channel - 4 Channels, Wavelength - TX-C21, C22, C23, C24RX-C57, C58, C59, C60, Special Port - Monitor, Expansion Port, Technology - TFF (Thin Film Filter), Insertion Loss - ≤3.10dB, 2.75dB Typical, Channel Spacing - 100GHz (0.8nm)
Net price · DE
€284,00
ex. VAT
In stock
3-year warranty · Netcore-backed
4 Channels DWDM Mux Demux, 100GHz C57-C60, with Monitor and Expansion Port, 2.75dB Typical IL, LC/UPC, Single Fiber, Side-B, High Density, FHD® Plug-in Module

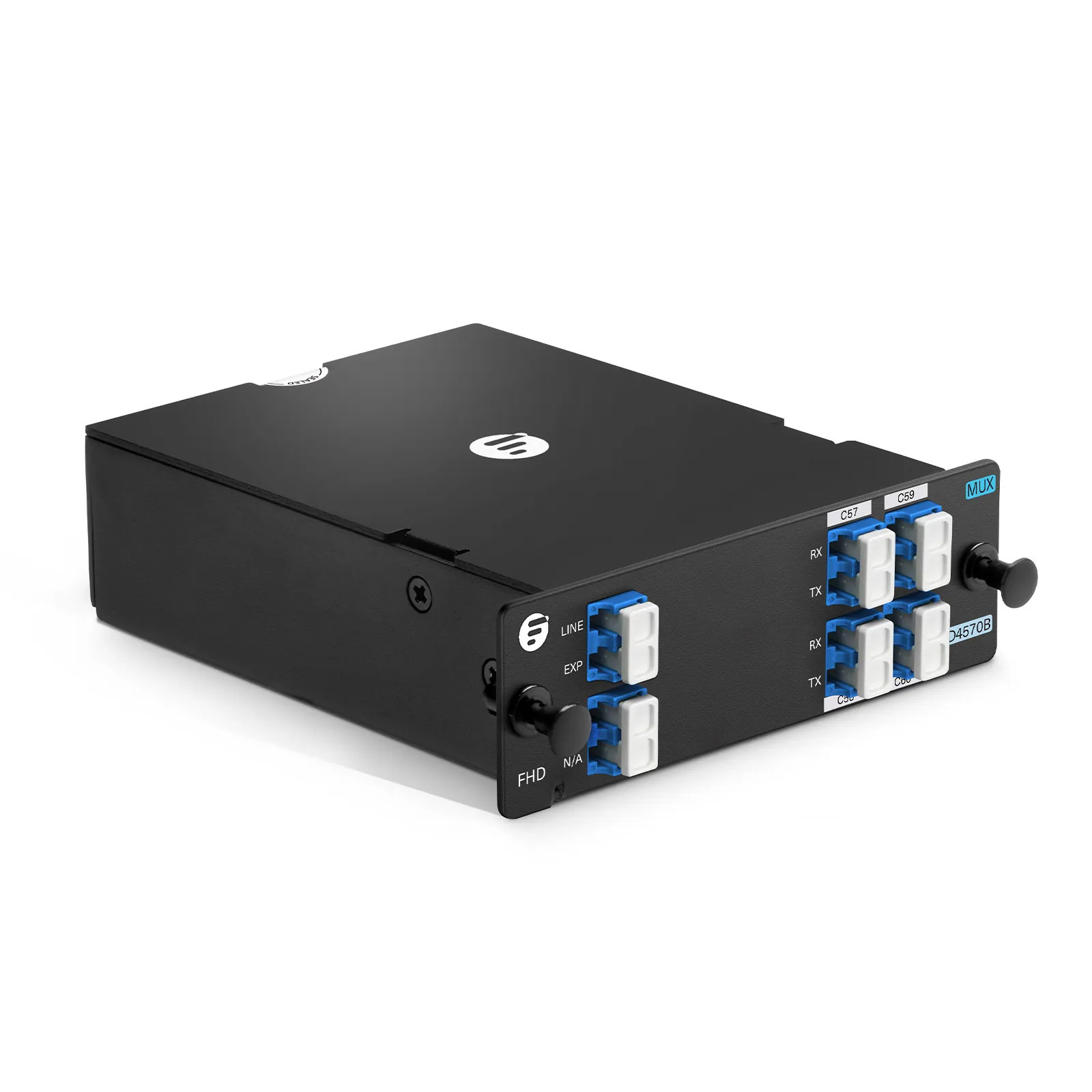

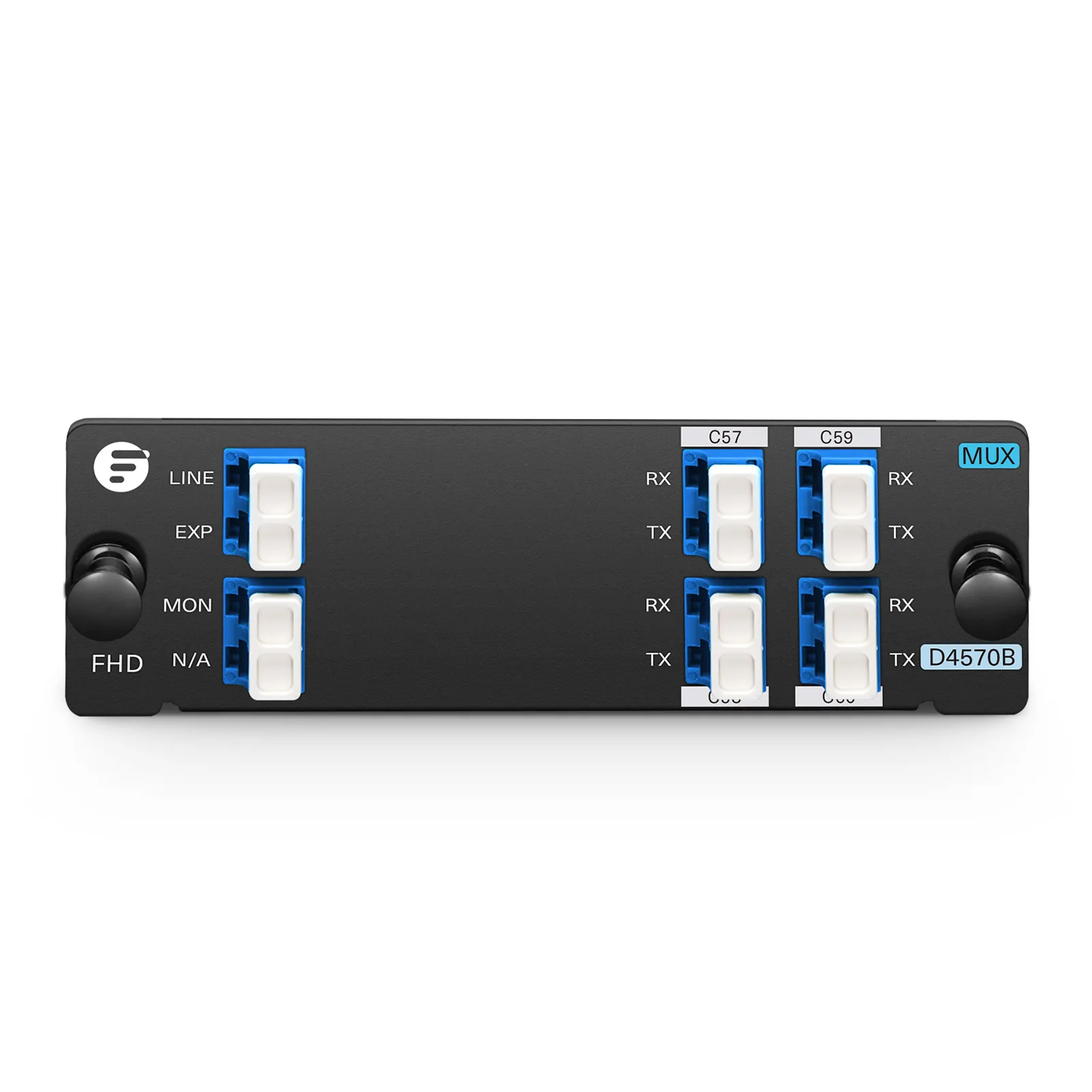

The 4CH Mux Demux, based on TFF (Thin Film Filter), is a passive DWDM device featuring high density, low loss, and long-haul transmission suitability. A 1% monitor port enables downtime-free troubleshooting, and an expansion port supports channel expansion. In addition, this unit can act as a Mux or Demux. It combines 4-channel of DWDM wavelengths into one composite signal and separates the combined signal into 4 individual wavelengths over a single-mode optical fibre. Compliant with the ITU-T G.694.1, it maximises the C-band range capacity. Designed for maximum configuration flexibility, the DWDM Mux Demux can plug directly into the FHD® chassis, each module occupying one slot.
It supports 1G/10G/25G Ethernet, SDH/SONET, 1/2/4/8/16G Fiber Channel, FTTx and CATV. When deployed with FS DWDM optical transceivers, OEO, EDFA and OADM modules, the Mux Demux seamlessly enables flexible network architectures ranging from simple point-to-point connections to amplified ring configurations.
It supports 1G/10G/25G Ethernet, SDH/SONET, 1/2/4/8/16G Fiber Channel, FTTx and CATV. When deployed with FS DWDM optical transceivers, OEO, EDFA and OADM modules, the Mux Demux seamlessly enables flexible network architectures ranging from simple point-to-point connections to amplified ring configurations.
Highlights
- 01Multiplexing of up to 4 Channels on Single Fiber to Maximize the Using of Existing Fiber
- 02Compatible with ITU Grid and Interconnects with All Optical Networking Products
- 03Monitor Port Taps off 1% of the Signal to Monitor the Channel Power Levels
- 04Expansion Port for Adding Additional Channels and Increasing Capacity
- 05Enables Space-efficient Integration and Hybrid Deployment of CWDM, DWDM, LWDM, OWDM, FAP and MTP Cassettes within the FHD® Chassis
- 06Passive Transparent Multiplexing at Any Rate, Any Service, Including Ethernet, SDH/SONET, Fiber Channel, FTTx, and CATV
- 07Suitable for Long-distance Transmission, Including OTN, DCI and WAN Networks

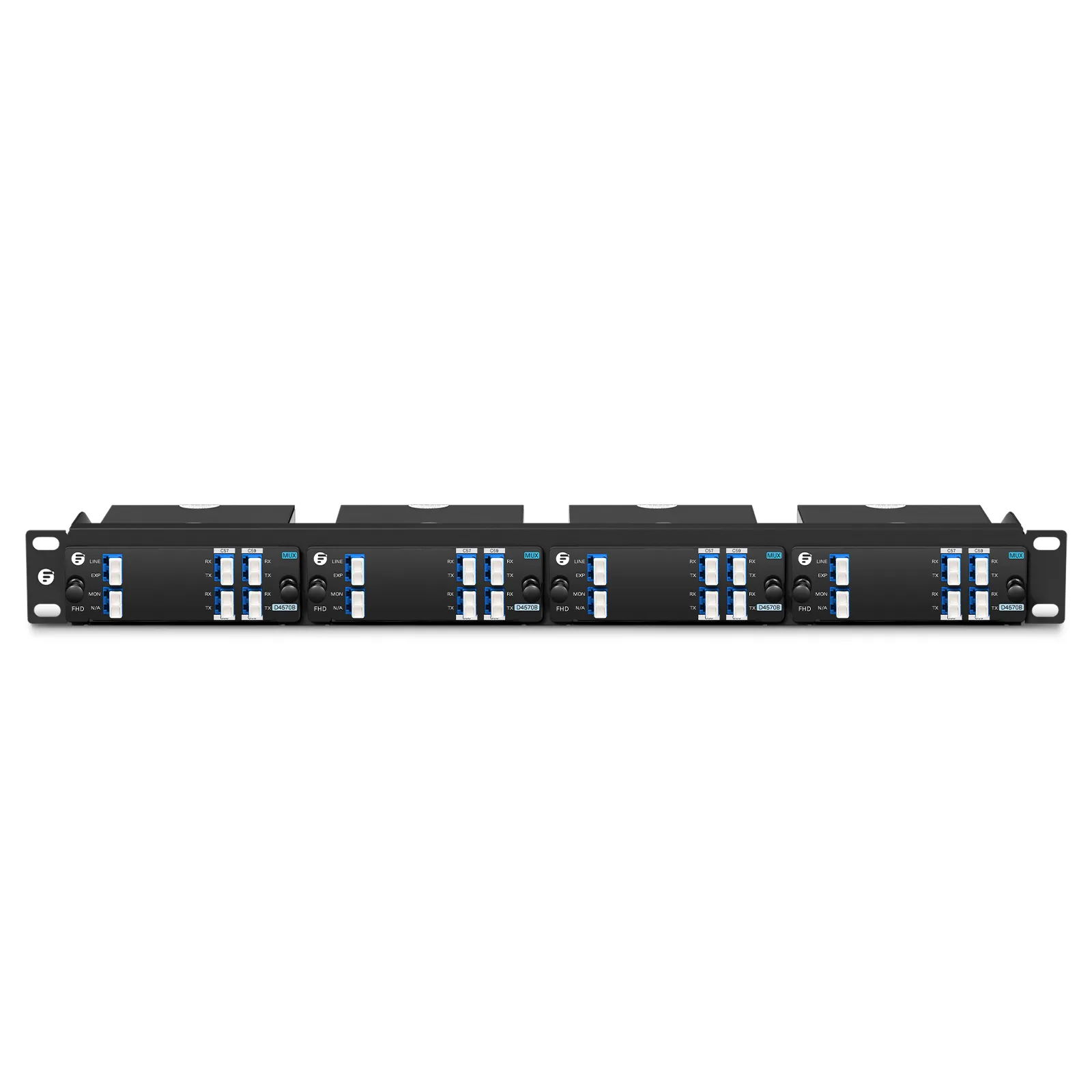

- 08Fit into One Slot of the FHD® 4-Slot 1U 19” Rack Chassis
Specifications
20 fields| Channel | 4 Channels |
| Wavelength | TX-C21, C22, C23, C24<br/>RX-C57, C58, C59, C60 |
| Special Port | Monitor, Expansion Port |
| Technology | TFF (Thin Film Filter) |
| Insertion Loss | ≤3.10dB, 2.75dB Typical |
| Channel Spacing | 100GHz (0.8nm) |
| Channel Passband | ±0.11nm |
| Passband Ripple | ≤0.5dB |
| Return Loss | ≥45dB |
| Adjacent Channel Isolation | ≥30dB |
| Non-adjacent Channel Isolation | ≥40dB |
| Connector | LC/UPC |
| Polarization Dependent Loss | ≤0.3dB |
| Polarization Mode Dispersion | ≤0.1ps |
| Max Optical Power | ≤500mW (27dBm) |
| Directivity | ≥45dB |
| Temperature | Operating: -40 to 85°C (-40 to 185°F)<br/>Storage: -40 to 85°C (-40 to 185°F) |
| Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118mm) |
| Rack Space | 1U ¼-width Plug-in Module |
| Housing | Pluggable Module (Occupies 1 Slot in <a href="/de-en/products/70419.html?attribute=115021&id=4484715" >FHD® Chassis</a>) |
Features
Efficient and Economical Single-fibre Solution
Mix of Services Multiplexing at Any Rate
Flexible mix of 1G/10G/25G Ethernet, SDH/SONET, 1/2/4/8/16G FC, FTTx and CATV, it's transparent to any rate, any service multiplexing and upgrade.
- Ethernet
- SDH/SONET
- FTTx
- Video Services
Monitor Port for Your Diversified Monitoring Needs
Expansion without Service Interruption
Higher Density Design to Meet Diversified Needs
Data Center Interconnect for DWDM Network
Custom Solution Tailored to Your Needs
- Increase Network Capacity
- <a href="/de-en/solution_design.html?resource=1" >Network Design</a> and Optimization
- Staging and Configuration Support
